fanatic price and high quality pipe bending machine factory in china

  • >=1 Pieces
    $22,000.00
Max. Tube Diameter (mm):
75
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Samples:
$20.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Place of Origin:
Jiangsu, China
Brand Name:
CEDAR
Extra Services:
Machining
Material / Metal Processed:
ALLOY, Brass / Copper, Carbon Steel, Stainless Steel, Aluminum
Condition:
New
Certification:
ISO 9001:2008
Automation:
Automatic
Year:
2019
Power (kW):
11
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Key Selling Points:
Automatic
Weight (KG):
3500
Bending Radius (mm):
35 - 250
Max. Bending Angle (Deg):
185
Bending Precision (Deg):
±0.1
Product name:
DW75CNC Automatic tube bending machine
Type:
DW75CNC
Motor power:
11KW
Head:
Double Head
Used for:
Tube bending using
Hydraulic motor:
Mitsubishi servo motor
Touch screen:
WEINVIEW
Machine Size:
4800X1350X1230mm
Machine weight:
3500KG
Operation:
WEINVIEW touch screen
Supply Ability
Supply Ability:
1 Set/Sets per Month

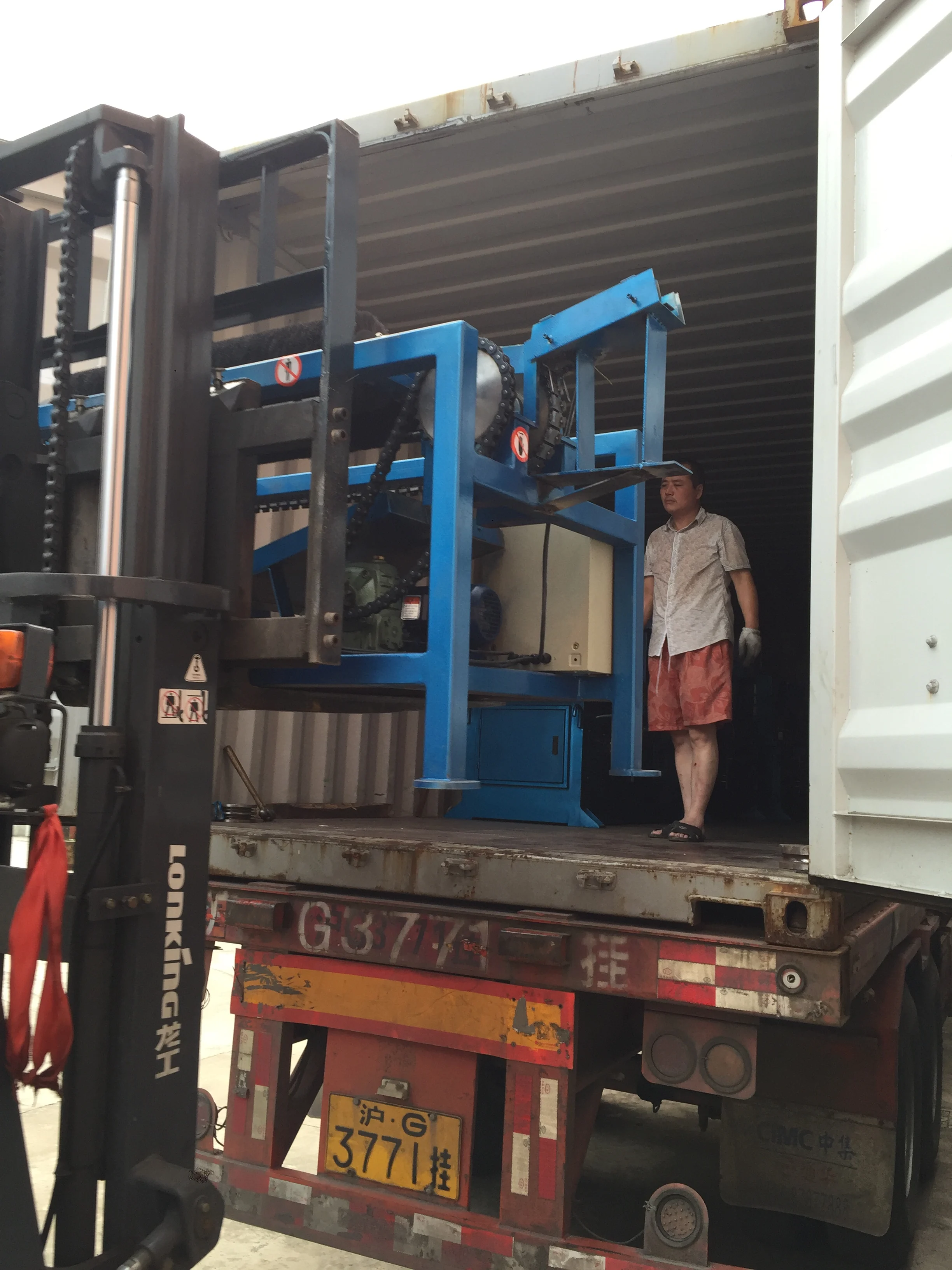

Packaging & Delivery

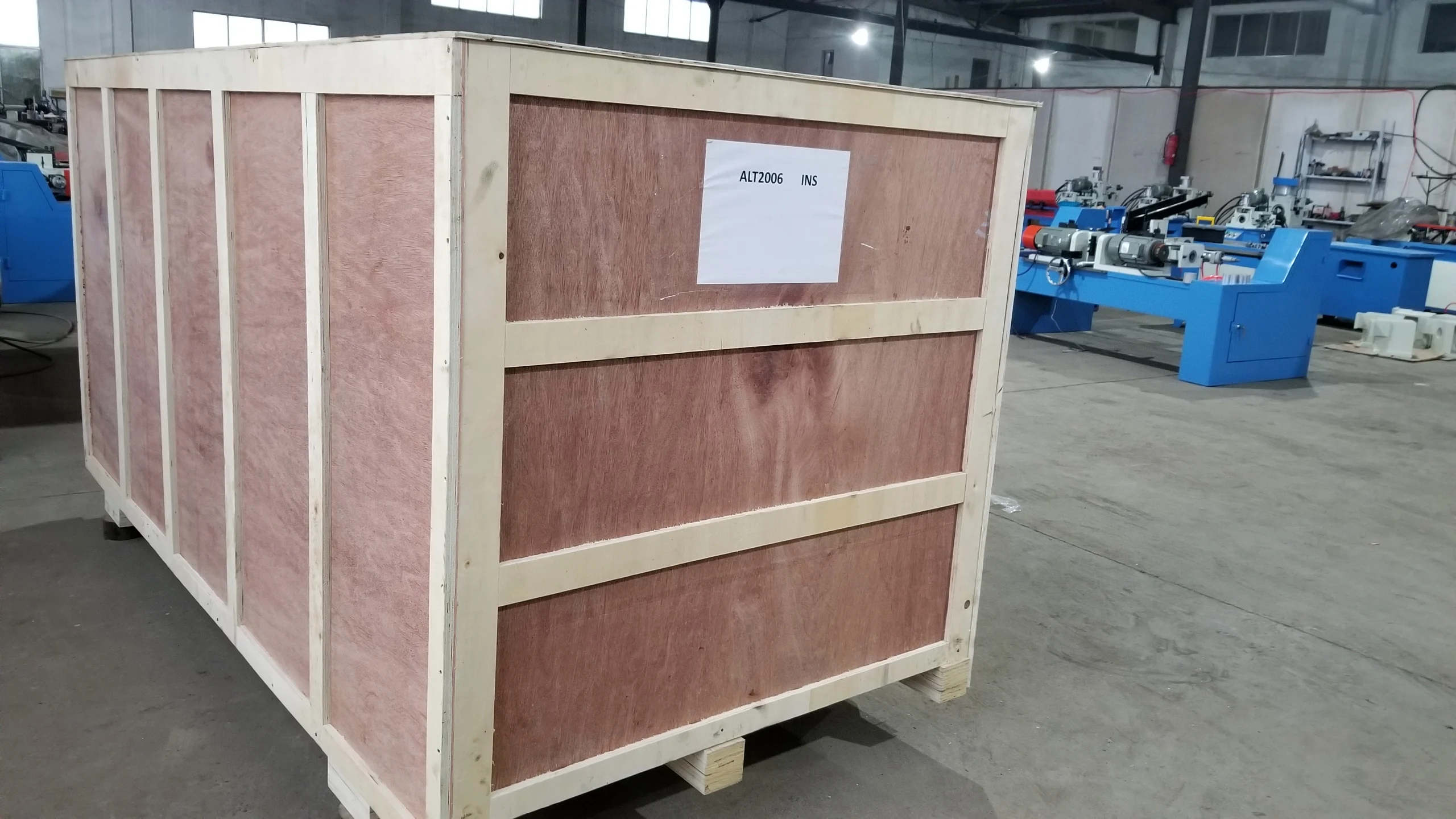

Packaging Details
Plywood case
Port
sahnghai
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

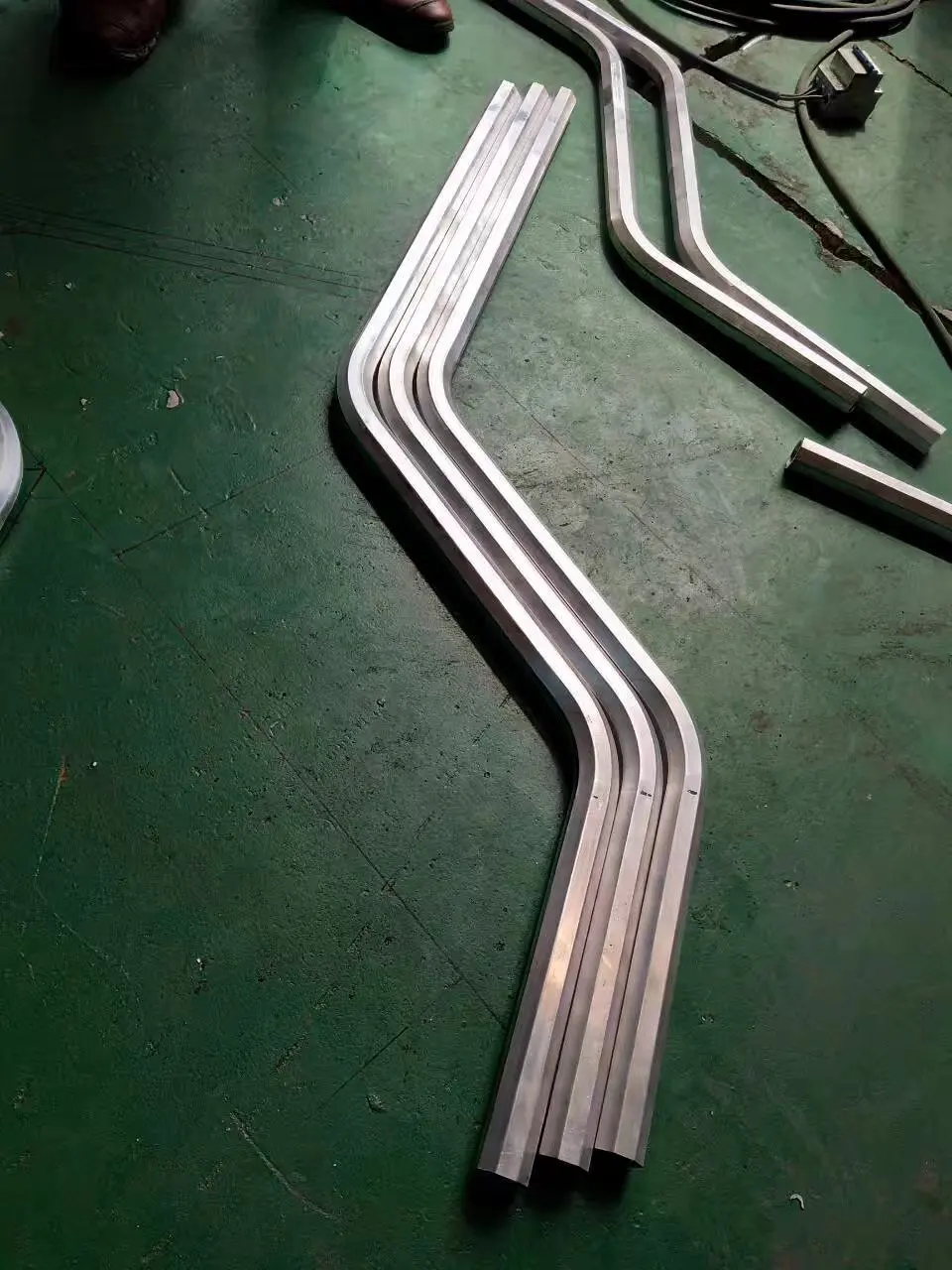

Product sample
Machine Parameters
content
Parameters
Max. Capacity OD x WT (Mild Steel)
75*3
Maximum core length
2700mm
Maximum feeding schedule
2500mm
Maximum bending radius
400mm
Maximum bending Angle
185°
Each pipe can set the number of elbows
32
Working speed bend
40°/S
Working speed  Corner
160°/S
AccuracyFeeding
±0.1mm
Accuracybend
±0.1°
AccuracyCorner
±0.1°
Power Corner servo motor
1.0KW
Power Feed servo motor
1.5KW
The oil pump
33
Motor power
11KW
Machine size
4800X1350X1230mm
Machine weight
3500KG
The machine features

The machine features:

1. This model for the economical type automatic three-dimensional CNC pipe bender, which can automatically bend, automatic feeding, automatic rotated Angle, three-dimensional bending the pipe fittings can be automatically completed, its feeding, rotated two shaft is driven by servo motor and servo drive control, bend axis is controlled by hydraulic numerical, auxiliary push through basins valve matching speed adjustment. 1.Both the feed and the tilt of the two axis can be set 1-8 times according to the actual workpiece. The pipe shaft adjusts the match speed through the pressure-regulating valve. 2.The "color touch screen" is easy to understand. All bend data data can be entered by touch screen. 3.Each tube can be set up 32 bends (or selected by the user), and the memory capacity can store 330 (or 125) pipes. 5.The screen display text is equipped with both Chinese and English. If you need other countries, you can choose. 6.Each tube can be set up 32 bends (or selected by the user), and the memory capacity can store 330 (or 125) pipes.
7.The data editor completes the key lock function, prevents the data from being changed arbitrarily. 8.With power failure memory function, the data can be saved permanently. 9..Can set manual, semi-automatic, automatic operation mode. When bending, you can use manual decomposition, observe the interference point and modify the action. 10..Each curve can be used to set the feeding, bending and rotating the three shafts to avoid interference points to improve the efficiency of production. There are eight different ways to choose from: (send material + return curve) to tilt; (send material + return bend + turn); The turning, turning, turning, turning, and turning; To return to the bend. The return of the curve, the return of the material, the turning. The turning, turning, turning, the feeding; The turn of the curve goes to (feed + tilting). 11.Each bending can be set up to compensate for the variation of the material. 12.There are two kinds of send and clip, which can be used when the core is not worn, and the length of the workpiece is not restricted. 13.Reliable, safe place, wheel molding interference location, guide mode interference location, such as setting, all can fine-tune operation, computer automatic memory location function, eliminating human measurement error of collisions with the machine failure, and a limit stop function, before and after the double insurance. 14.The function of bending and stretch ratio of tube is measured by the method of direct delivery, which is convenient for calculating the actual consumption length of the pipe. 15.There is a count function for the artifact.
16.It has a zero function, just press the button. There is no need to return the two axes to zero, saving time and accuracy. 17.Automatic detection error or machine malfunction function and display on the screen for the operator to exclude. 18.The servo proportional valve control flow is not affected by oil temperature, high accuracy and stable equipment.


Product packaging And After-sales Service

After-sales service

1.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely. 2.Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely. 3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype,Whatsapp,WeChat, Email and Telephone at any time, we provide 24 hours on-line service.
OUR COMPANY
FAQ

Questions and answers:

1.Q: Are you a manufacturer or a trading company? A:We are direct selling companies. Cedar is our trademark. We do pipe processing machinery. 2. Q: how did you choose your machine? A: you have to tell us the following details What size do you want How much the thickness What material How much accuracy is required Of course, you'll be better off with the draft. 3. Q: what about your machine quality and after-sales service? The quality assurance of our company is the first, many old customers, after sale we wholeheartedly serve you. 4. Q: where is your factory? Our factory is located in zhangjiagang city under the jurisdiction of suzhou city. You can fly directly to Shanghai hongqiao airport or PVG airport. Welcome to our humble abode.
