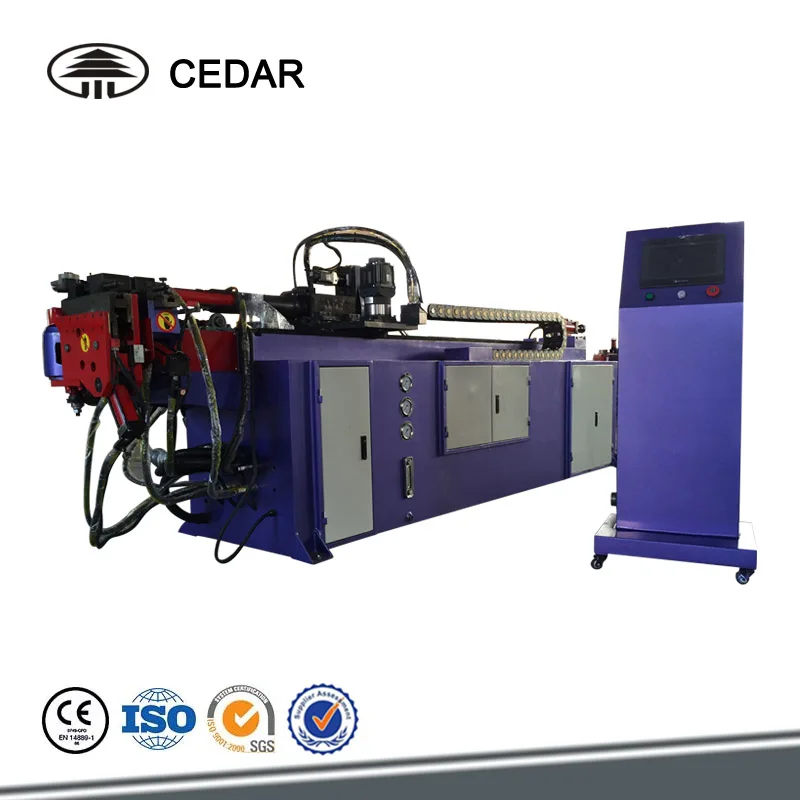

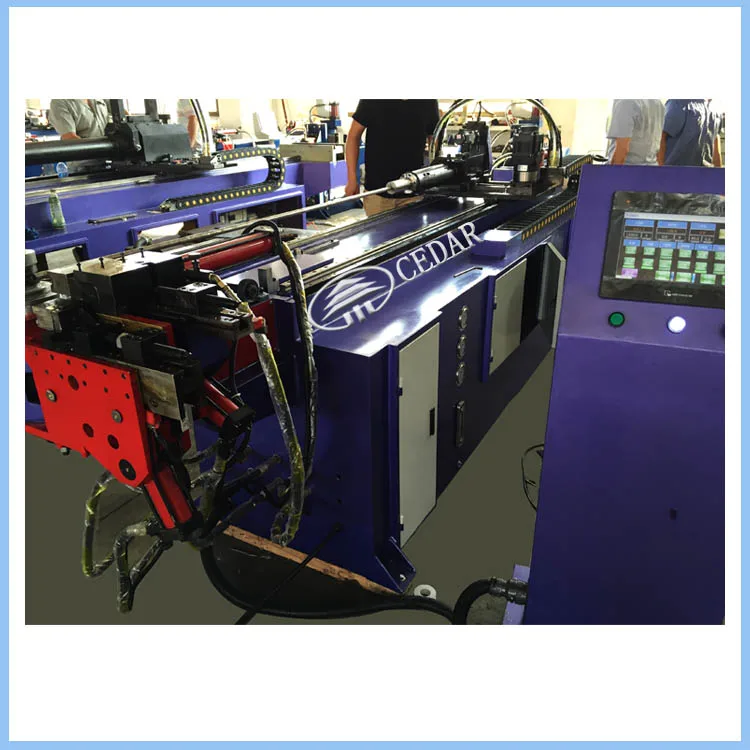

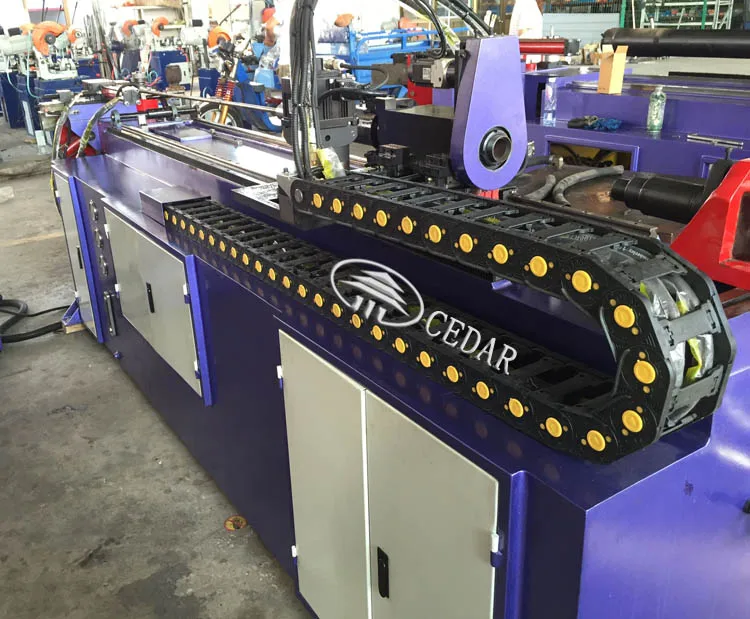

38cnc automatic pipe bending machine stainless steel pipe bending machine CE certificate

FOB Reference Price:Get Latest Price
$13,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Max. Tube Diameter (mm):
38
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$1.00 /Sets | 1 Sets (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Bending Precision (Deg):
±0.1
Max. Bending Angle (Deg):
185
Condition:
New
Place of Origin:
China
Brand Name:
CEDAR
Material / Metal Processed:
ALLOY, Brass / Copper, Carbon Steel, Stainless Steel, Aluminum
Automation:
Automatic
Extra Services:
Machining
Certification:
ce
Year:
2019
Power (kW):
5.5
Weight (KG):
1900
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Warranty:
1 Year
Key Selling Points:
High Productivity
Product name:
38cnc automatic pipe bending machine
Motor power:
5.5kw
Control:
PLC
Maximum core length:
2000mm
Maximum bending radius:
200mm
Maximum bending Angle:
185°
The oil pump:
17L
Service:
After-sales Service Provided
Machine weight:
1900kg
Machine size:
3500X840X1300mm
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case
Port
shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description

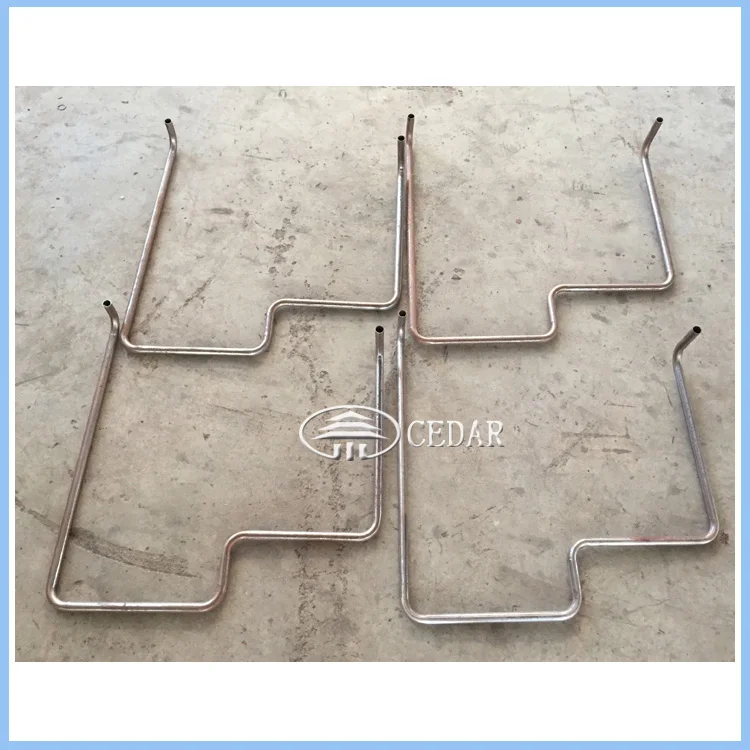

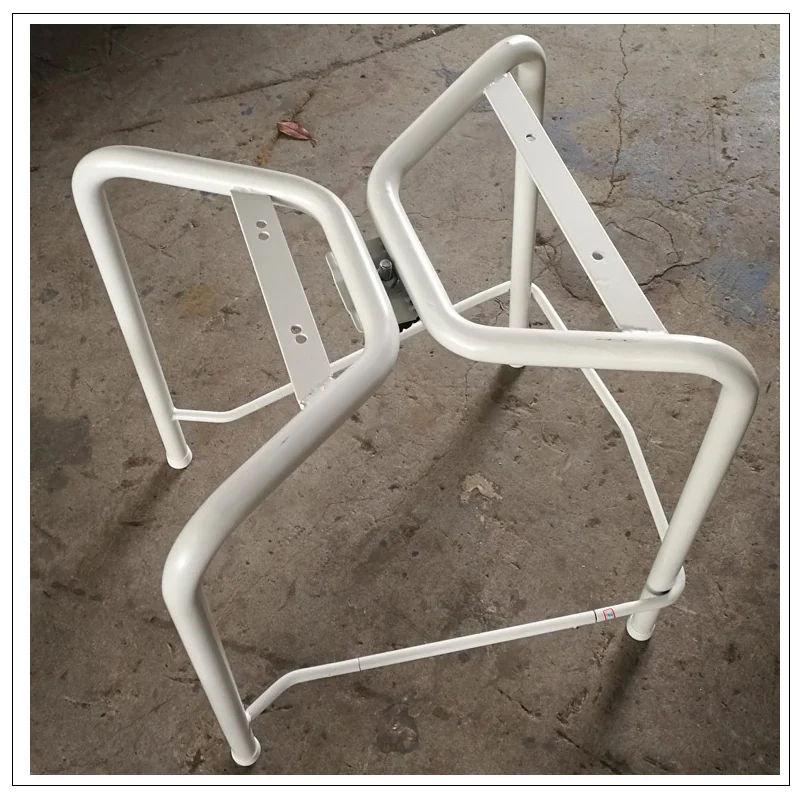

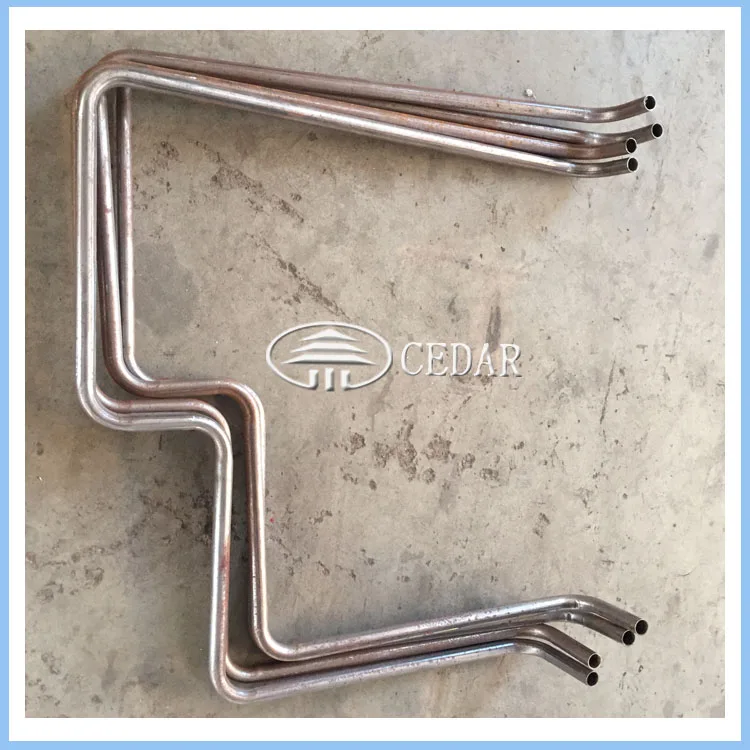

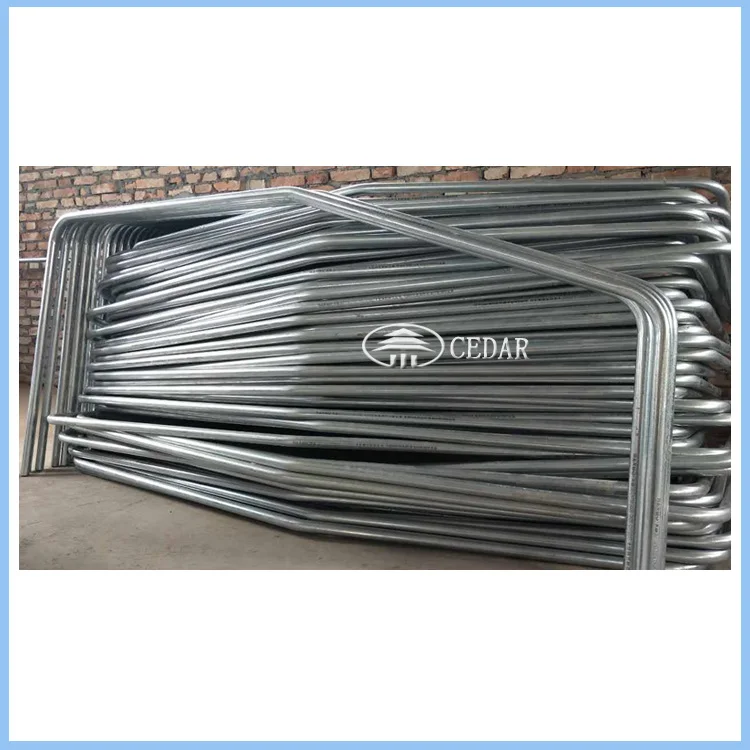

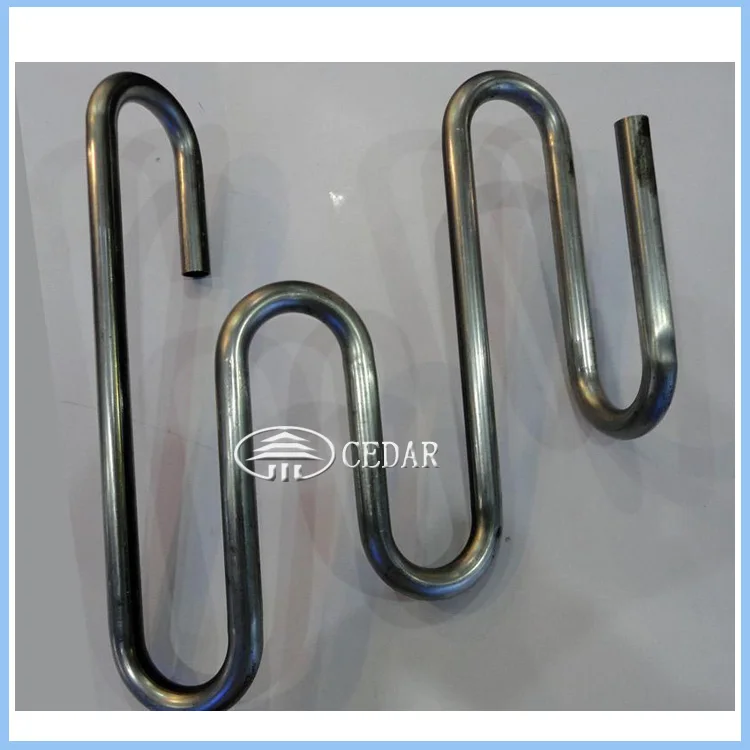

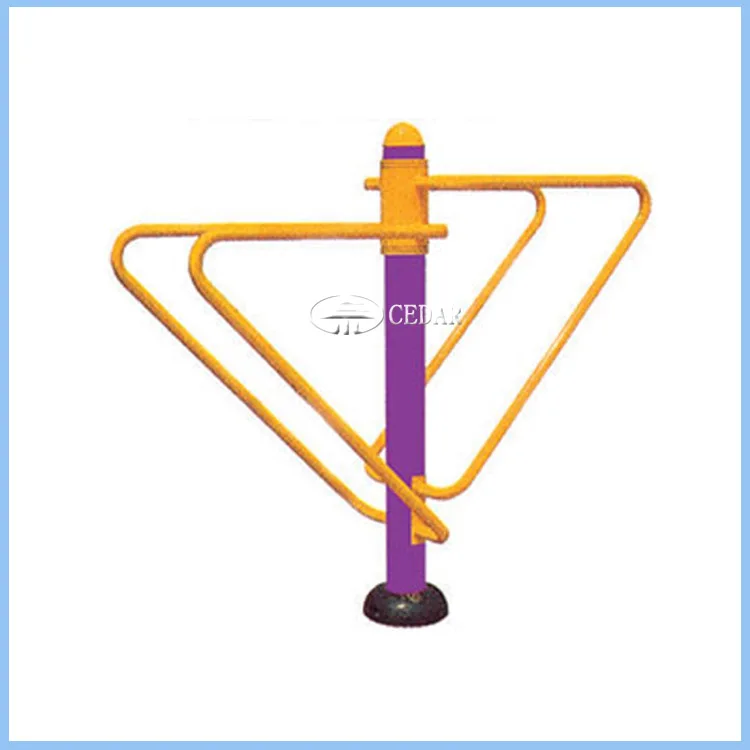

Product sample
Product Paramenters
Project
DW38CNC
Max. Capacity OD x WT (Mild Steel)
Ф38*2.0
The largest applicable stainless steel pipe
Ф35*1.5
Maximum core length
2000㎜
Maximum feeding schedule
1800㎜
Maximum bending radius
200㎜
Maximum bending Angle
185°
Each pipe can set the number of elbows
16
Working speed —bend
35°/S
Working speed —Corner
50°/S
Working speed —Feeding
900㎜/S
Accuracy—bend
±1.0°
Accuracy—Corner
±0.10°
Accuracy—feeding
±0.15㎜
Corner servo motor
0.75KW
Feed servo motor
1.0KW
Bend pipe servo motor
5.5KW
The oil pump
17L
Machine weight
About 1900㎏
Machine size
3500X840X1300mm
Product packaging And After-sales Service

After-sales service:

1.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely. 2.Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely. 3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype,Whatsapp,WeChat, Email and Telephone at any time, we provide 24 hours on-line service.
Recommend Products
Company Profile
ZHANGJIACANG CEDAR TECHNOLOGY CO.LTD is a professional engaged in machinery manufacturing,ODM&OEM services.Our factory locates next to ShangHai,WuXi,ChangZhou. Application:automotive industry,shipbuilding industry,boiler industry,fitness equipment,commercials,furniture industry,bicycles,electric cars,motorcycles etc. Products exported to Europe,Southeast Asia,South America,Africa,the United States more than 60 countries and regions(Germany,Sweden,Brazil,Indonesia,Malaysia,United Arab Emirates,Russia,Australia). What we have: 1.provide customers with comprehensive product optimization solutions and timely after-sales service 2.More than 20 years of industry experience,systematic expertise,ISO9001:2008 through the parts purchase,production and service, bringing customers a quality product experience 3.Global manufacturing plant and processing partner network,ready to provide customers with high-quality flexible equipment
FAQ

Questions and answers:

1. Q: Are you a manufacturer or a trading company? A: We face the market directly. Cedar is our trademark. We work on pipe processing machinery professionally. 2.Q: How can you choose your machine correctly?A: You can tell us the following details, such as let us know your cutting data, thickness of the tube and the material. 3. Q: What about the quality of the machine and the after-sales service? A: Firstly, our company ensures quality and safety. We have many regular customers. Our after-sales service is perfect. Your satisfaction is guaranteed. 4. Q: How can we arrive at your company? A: Our company is located in Zhangjiagang City, Jiangsu Province, and close to Shanghai. You can fly directly to the PVG airport or Shanghai Hongqiao airport. Welcome to visit our company.
